Sample Exercise 1
Now that you have an understanding of subnetting, put this knowledge to use. In this example, you are given two address / mask combinations, written with the prefix/length notation, which have been assigned to two devices. Your task is to determine if these devices are on the same subnet or different subnets. You can do this by using the address and mask of each device to determine to which subnet each address belongs.
Determining the Subnet for DeviceA:
Looking at the address bits that have a corresponding mask bit set to one, and setting all the other address bits to zero (this is equivalent to performing a logical "AND" between the mask and address), shows you to which subnet this address belongs. In this case, DeviceA belongs to subnet 172.16.16.0.Determining the Subnet for DeviceB:
From these determinations, DeviceA and DeviceB have addresses that are part of the same subnet.Sample Exercise 2

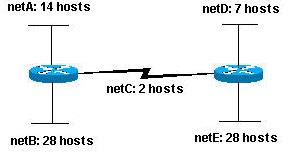

Given the Class C network of 204.15.5.0/24, subnet the network in order to create the network in Figure 3 with the host requirements shown.
Figure 3
Looking at the network shown in Figure 3, you can see that you are required to create five subnets. The largest subnet must support 28 host addresses. Is this possible with a Class C network? and if so, then how?
You can start by looking at the subnet requirement. In order to create the five needed subnets you would need to use three bits from the Class C host bits. Two bits would only allow you four subnets (2^2).
Since you need three subnet bits, that leaves you with five bits for the host portion of the address. How many hosts does this support? 2^5 = 32 (30 usable). This meets the requirement.
Therefore you have determined that it is possible to create this network with a Class C network. An example of how you might assign the subnetworks is:
